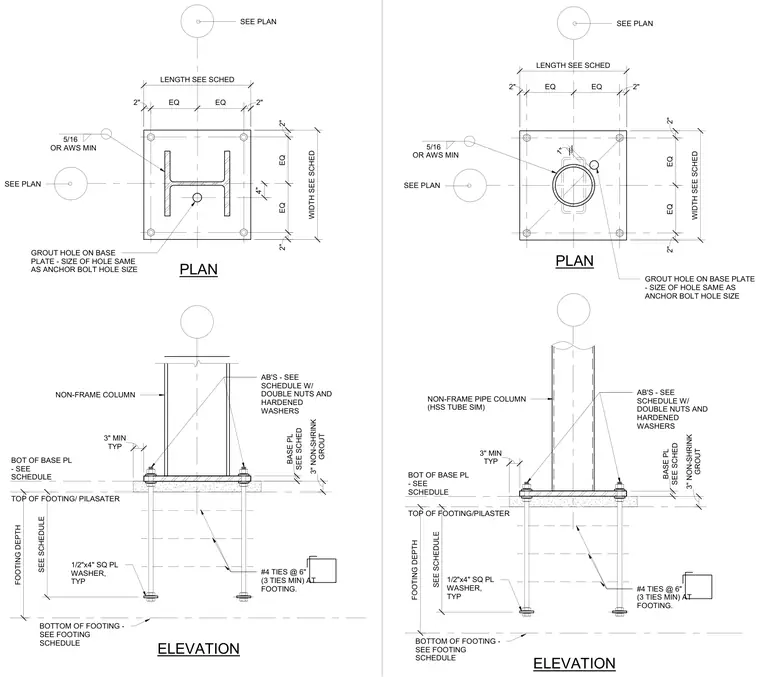

These non-frame column base plate details illustrate the connection of a wide flange column and a pipe column or hollow structural section tube to a concrete footing or pilaster. The base plates are anchored with anchor bolts detailed with double nuts, hardened washers, and square plate washers embedded at the footing depth. A three-inch minimum non-shrink grout layer sits beneath the base plate, with a specified grout hole on the base plate matching the anchor bolt hole size. Footing reinforcement includes number four ties at six inches on center with a minimum of three ties at the footing. Fillet welds of five-sixteenths inch or AWS minimum size secure the column profiles to their respective base plates.
PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE 5/16 BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" SEE SCHEDULE SEE PLAN SEE PLAN BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS SEE PLAN SEE PLAN NON-FRAME COLUMN ELEVATION PLAN BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP OR AWS MIN 5/16 TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
