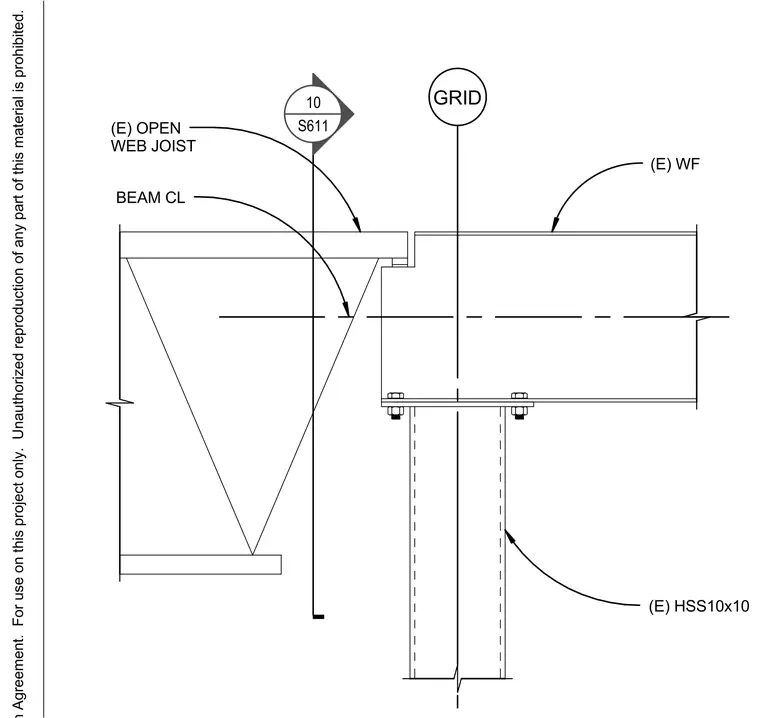

An existing open web joist frames adjacent to an existing wide-flange beam aligned on a grid line. The wide flange beam is supported by an existing HSS10x10 hollow structural section column with bolted connections. A section callout references detail 10 on sheet S611.
