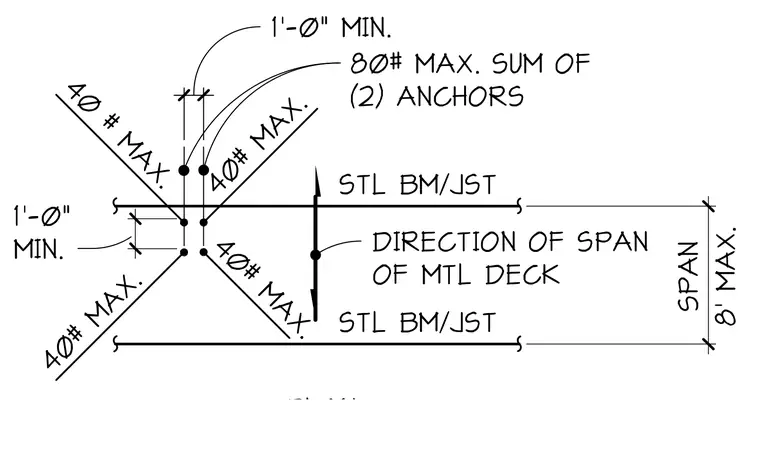

This detail specifies the attachment requirements for metal deck spanning between steel beams or joists. The layout indicates a maximum span of eight feet for the metal deck. Anchors are arranged in pairs with a maximum capacity of eighty pounds for the sum of two anchors. Each individual anchor is limited to a maximum of forty pounds. A minimum spacing of one foot is required between anchor sets in both directions to maintain structural integrity.
