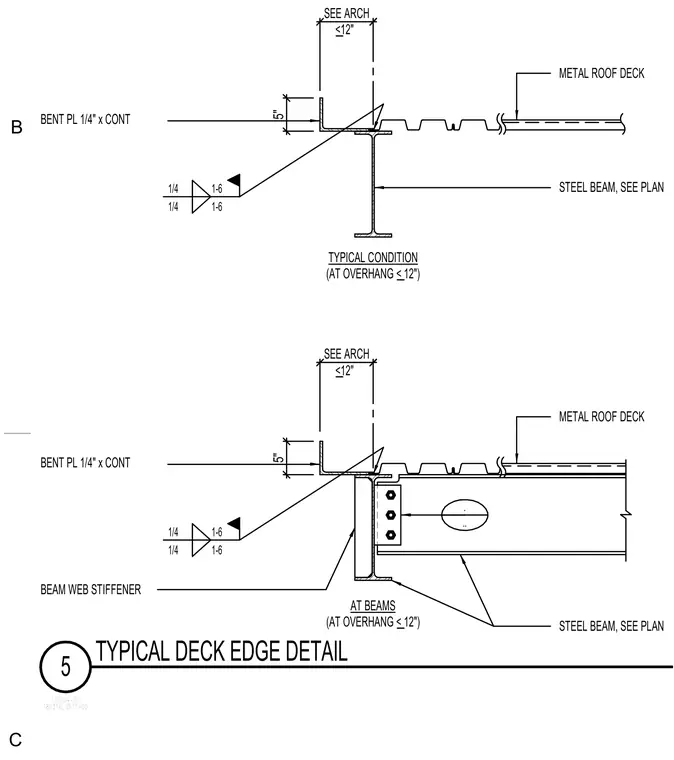

Edge condition for a metal roof deck bearing on a structural steel beam with an overhang of twelve inches or less. A continuous one-quarter-inch bent plate forms the edge curb, measuring five inches vertically. The steel beam is sized per plan and includes a beam web stiffener welded at specific conditions. Fillet welds connect the components according to the structural notes. Architectural coordination is required for the exact overhang dimensions.
180316_S511-00 133504-01 5 TYPICAL DECK EDGE DETAIL SEE ARCH 5" 5" <12" SEE ARCH <12" . .. STEEL BEAM, SEE PLAN 1/4 1-6 BENT PL 1/4" x CONT STEEL BEAM, SEE PLAN BEAM WEB STIFFENER TYPICAL CONDITION AT BEAMS 1/4 1-6 1/4 1-6 1/4 1-6 (AT OVERHANG < 12") METAL ROOF DECK BENT PL 1/4" x CONT METAL ROOF DECK (AT OVERHANG < 12") C B
