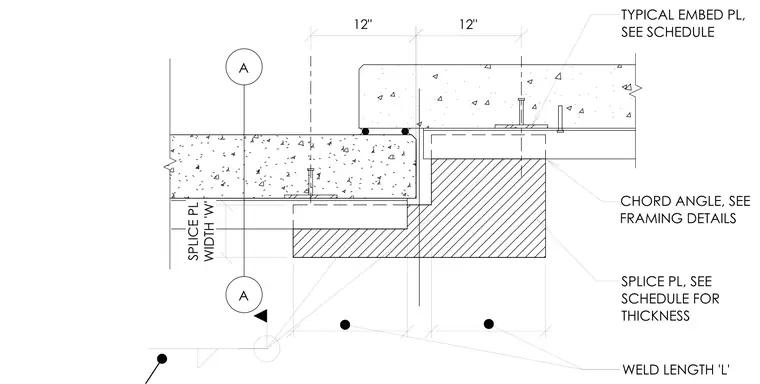

This assembly connects two concrete panels at an offset using a splice plate of width 'W' and thickness as specified in the project schedule. The splice plate is welded to the embedded plates in each panel with a weld length 'L'. A chord angle, sized per framing details, provides additional support at the junction. Typical embedded plates with headed studs are cast into the concrete panels to receive the steel connections.
Text on the drawing
A A SPLICE PL AT PANEL OFFSET 12" 12" SPLICE PL WIDTH 'W' CHORD ANGLE, SEE FRAMING DETAILS TYPICAL EMBED PL, SEE SCHEDULE SPLICE PL, SEE SCHEDULE FOR THICKNESS WELD LENGTH 'L'
