Pipes passing near foundations require specific clearance and encasement configurations to prevent structural compromise. Footings are stepped so as not to exceed three feet in depth, with pipes running below or parallel to the footing maintaining specified minimum dimensions. A sleeve with an inside diameter four inches greater than the outside diameter of the pipe is required. Three thousand psi concrete fill is placed around the sleeve matching the width of the footing before the main footing is poured, and no pipe is permitted to pass through the footing unless otherwise noted.

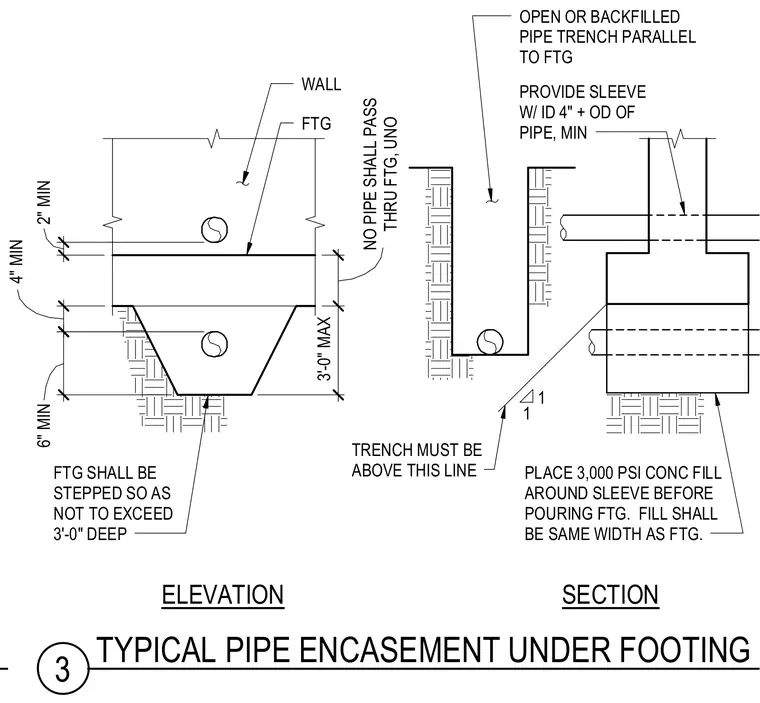

OPEN OR BACKFILLED PIPE TRENCH PARALLEL TO FTG PROVIDE SLEEVE W/ ID 4" + OD OF PIPE, MIN PLACE 3,000 PSI CONC FILL AROUND SLEEVE BEFORE POURING FTG. FILL SHALL BE SAME WIDTH AS FTG. TRENCH MUST BE ABOVE THIS LINE FTG SHALL BE STEPPED SO AS NOT TO EXCEED 3'-0" DEEP FTG WALL ELEVATION SECTION 1 1 15" 6" 3" 21" 12" 2" MIN 4" MIN 6" MIN 3'-0" MAX NO PIPE SHALL PASS THRU FTG, UNO 3 TYPICAL PIPE ENCASEMENT UNDER FOOTING
