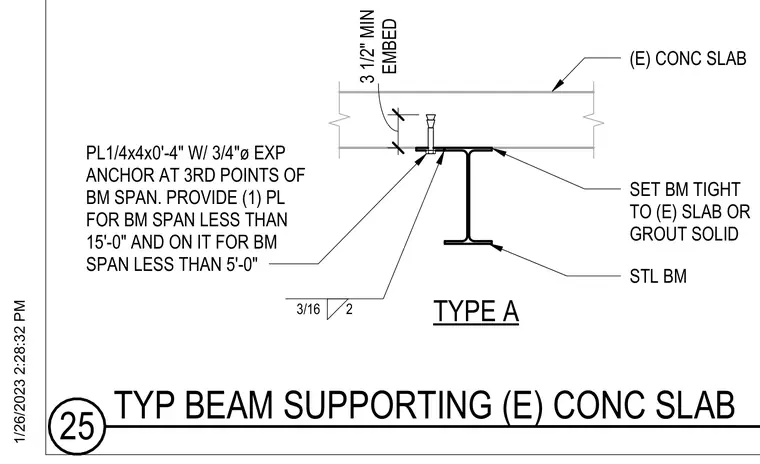

A steel beam is set tight to the underside of an existing concrete slab or grouted solid. A steel plate measuring 1/4 inch by 4 inches by 0 feet 4 inches is secured with three-quarter-inch diameter expansion anchors spaced at third points of the beam span. One plate is provided for beam spans less than 15 feet. A fillet weld connects components with a 3/16-inch size.
(E) CONC SLAB SET BM TIGHT TO (E) SLAB OR GROUT SOLID STL BM EMBED 3 1/2" MIN PL1/4x4x0'-4" W/ 3/4"ø EXP ANCHOR AT 3RD POINTS OF BM SPAN. PROVIDE (1) PL FOR BM SPAN LESS THAN 15'-0" AND ON IT FOR BM SPAN LESS THAN 5'-0" TYPE A 2 3/16 1/26/2023 2:28:32 PM 25 TYP BEAM SUPPORTING (E) CONC SLAB
