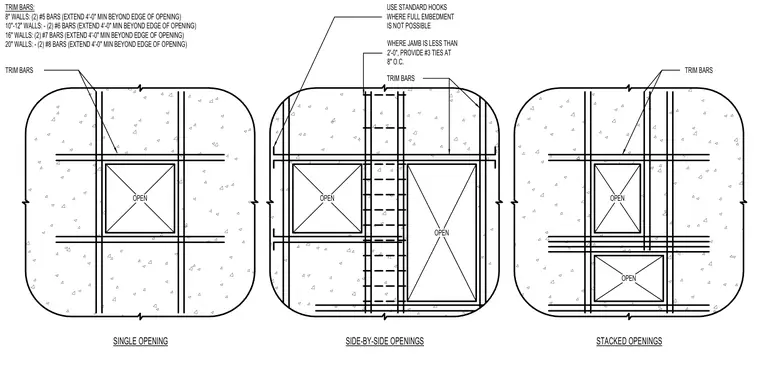

Reinforced concrete wall openings require specific trim bar configurations around their perimeters based on wall thickness. Eight-inch walls require two number five bars, ten to twelve-inch walls require two number six bars, sixteen-inch walls require two number seven bars, and twenty-inch walls require two number eight bars, with all bars extending a minimum of four feet beyond the edge of the opening. Standard hooks are used where full embedment is not possible. Where a jamb is less than two feet, three number three ties are provided at eight inches on center.
OPEN OPEN OPEN OPEN OPEN SINGLE OPENING SIDE-BY-SIDE OPENINGS STACKED OPENINGS TRIM BARS USE STANDARD HOOKS TRIM BARS TRIM BARS WHERE FULL EMBEDMENT IS NOT POSSIBLE WHERE JAMB IS LESS THAN 2'-0", PROVIDE #3 TIES AT 8" O.C. TRIM BARS: 8" WALLS: (2) #5 BARS (EXTEND 4'-0" MIN BEYOND EDGE OF OPENING) 10"-12" WALLS: - (2) #6 BARS (EXTEND 4'-0" MIN BEYOND EDGE OF OPENING) 16" WALLS: (2) #7 BARS (EXTEND 4'-0" MIN BEYOND EDGE OF OPENING) 20" WALLS: - (2) #8 BARS (EXTEND 4'-0" MIN BEYOND EDGE OF OPENING)
