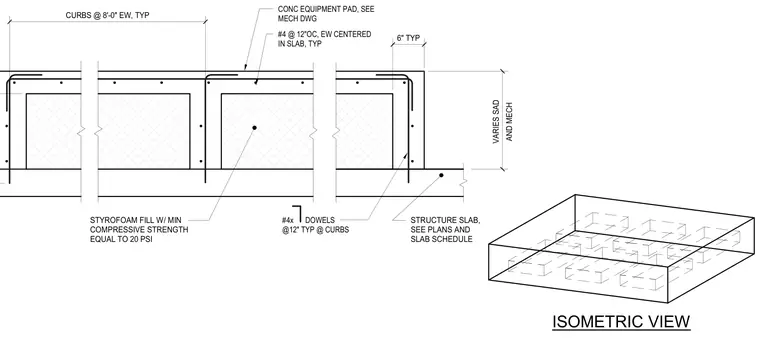

A concrete equipment pad is cast over a structural slab with interior styrofoam fill blocks having a minimum compressive strength of 20 psi. The pad features six-inch typical curbs spaced at eight feet each way, reinforced with number four bars at twelve inches on center each way centered in the slab. Number four dowels spaced at twelve inches on center anchor the curbs to the structural slab below, with pad height varying per mechanical requirements and plans.
CONC EQUIPMENT PAD, SEE MECH DWG #4 @ 12"OC, EW CENTERED IN SLAB, TYP STRUCTURE SLAB, SEE PLANS AND SLAB SCHEDULE STYROFOAM FILL W/ MIN COMPRESSIVE STRENGTH EQUAL TO 20 PSI 6" TYP CURBS @ 8'-0" EW, TYP #4x DOWELS @12" TYP @ CURBS AND MECH VARIES SAD ISOMETRIC VIEW
