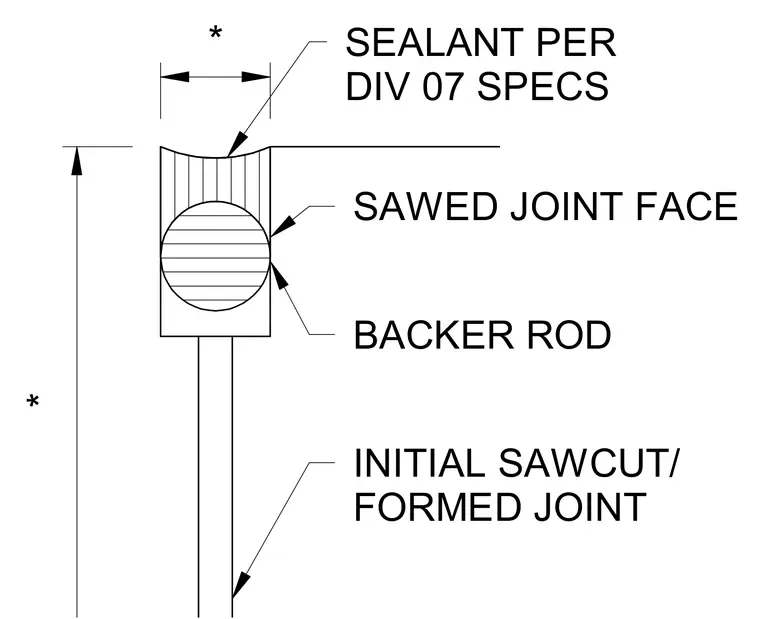

Concrete slabs feature a sawed joint face prepared with an initial sawcut or formed joint. A cylindrical backer rod is inserted into the joint to control sealant depth and shape. An elastomeric sealant conforming to division 07 specifications is applied flush at the top surface.
SAWED JOINT FACE INITIAL SAWCUT/ FORMED JOINT BACKER ROD SEALANT PER DIV 07 SPECS * *
