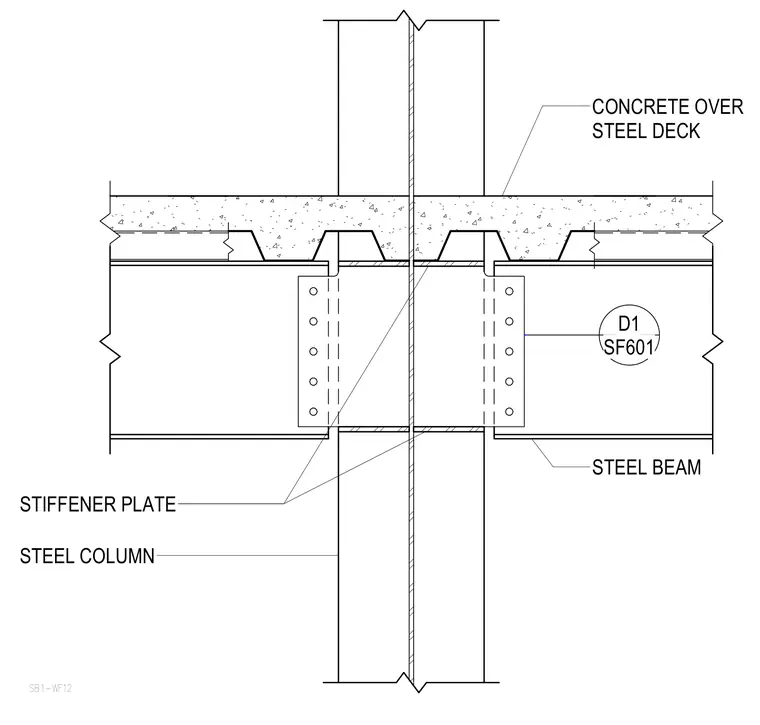

A wide-flange steel beam connects to a vertical steel column utilizing stiffener plates welded to the column web and flanges. A concrete slab over profiled steel deck bears across the top flange of the steel beam. The connection includes bolted flange or web elements transferring loads into the main structural column.
SB1-WF12 STIFFENER PLATE STEEL COLUMN STEEL BEAM CONCRETE OVER STEEL DECK SF601 D1
