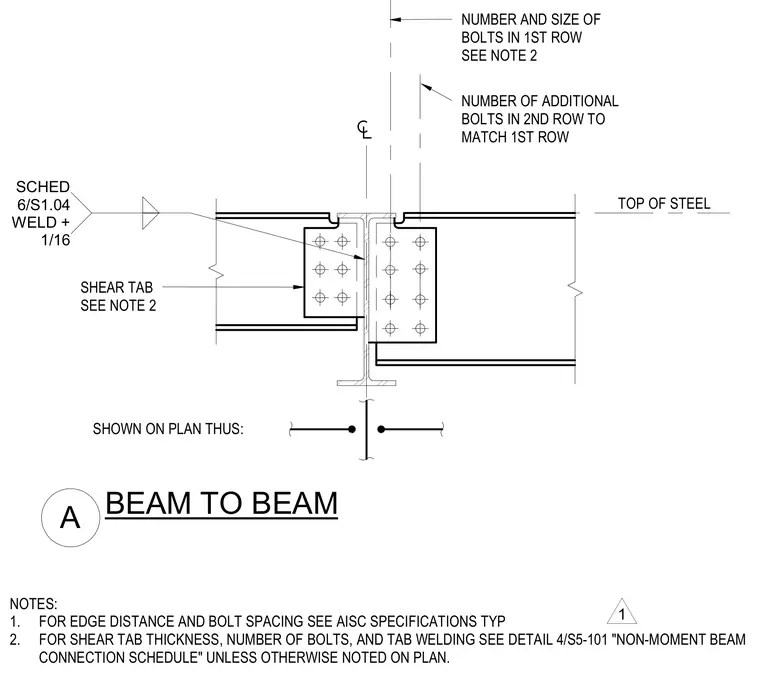

Two aligned steel beams connect through a vertical shear tab welded to the supporting member web and bolted to the supported beam web. The connection utilizes rows of bolts sized and spaced per schedule, with edge distances conforming to AISC specifications. The shear tab thickness, number of bolts, and tab welding are determined by the connection schedule unless noted otherwise on plan. Additional bolt rows are provided to match the primary row count.
NOTES: 1. FOR EDGE DISTANCE AND BOLT SPACING SEE AISC SPECIFICATIONS TYP 2. FOR SHEAR TAB THICKNESS, NUMBER OF BOLTS, AND TAB WELDING SEE DETAIL 4/S5-101 "NON-MOMENT BEAM CONNECTION SCHEDULE" UNLESS OTHERWISE NOTED ON PLAN. SHEAR TAB SEE NOTE 2 TOP OF STEEL NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 A BEAM TO BEAM SHOWN ON PLAN THUS: NUMBER OF ADDITIONAL BOLTS IN 2ND ROW TO MATCH 1ST ROW SCHED 6/S1.04 WELD + 1/16 1
