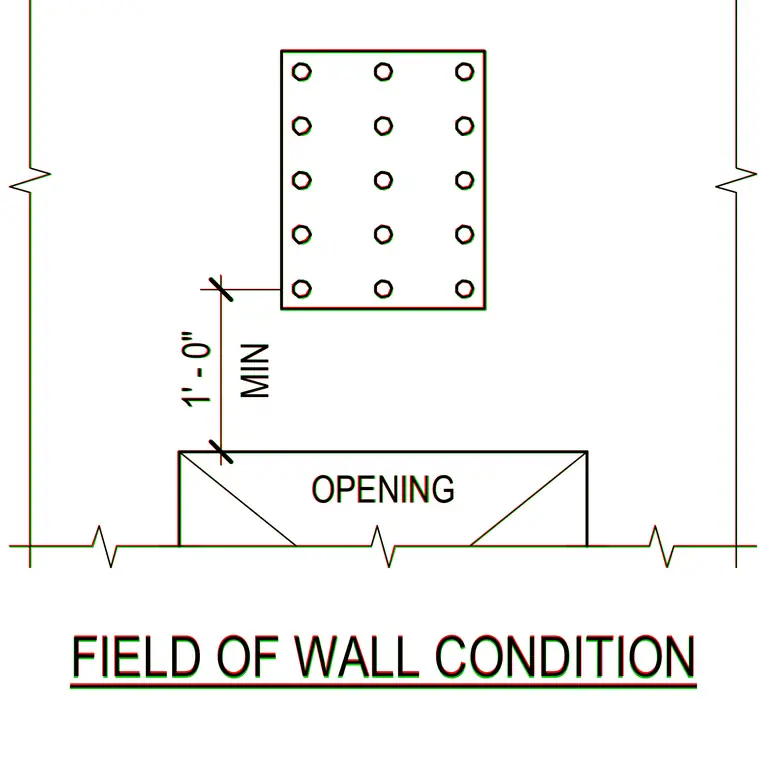

A minimum one-foot clearance distance is maintained between the wall opening and the field of the wall condition. The layout establishes spatial separation requirements around penetrations and openings.
MIN 1' - 0" OPENING FIELD OF WALL CONDITION MIN 1' - 0" OPENING FIELD OF WALL CONDITION
