Cold-formed steel studs frame into a double-track header supported by angle clips at the jamb studs. A 2x2 angle clip matches the stud gauge and spans the stud width less one-half inch, secured with three number 10 self-tapping metal screws on each leg at the top and bottom of the header. Stud and track sizes and gauges match the adjacent wall framing. The top and bottom tracks are fastened to the framing with number ten self-tapping metal screws spaced at twelve inches on center typical.

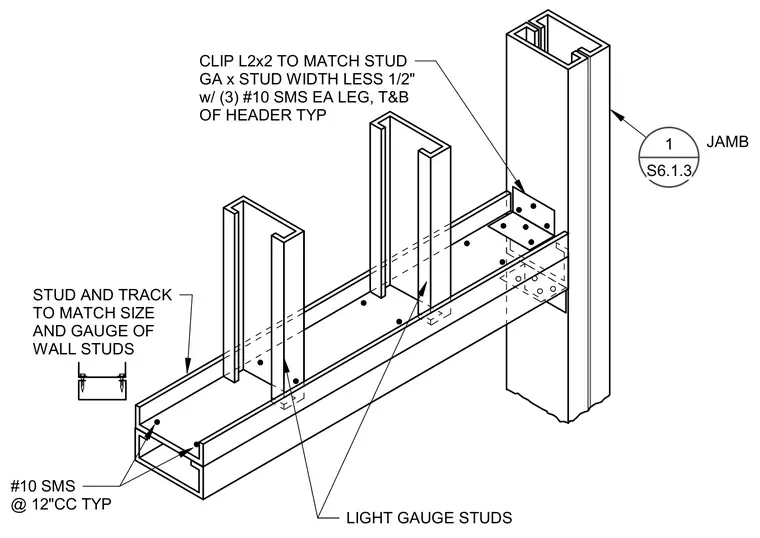

1 S6.1.3 LIGHT GAUGE STUDS CLIP L2x2 TO MATCH STUD GA x STUD WIDTH LESS 1/2" w/ (3) #10 SMS EA LEG, T&B OF HEADER TYP STUD AND TRACK TO MATCH SIZE AND GAUGE OF WALL STUDS #10 SMS @ 12"CC TYP JAMB
