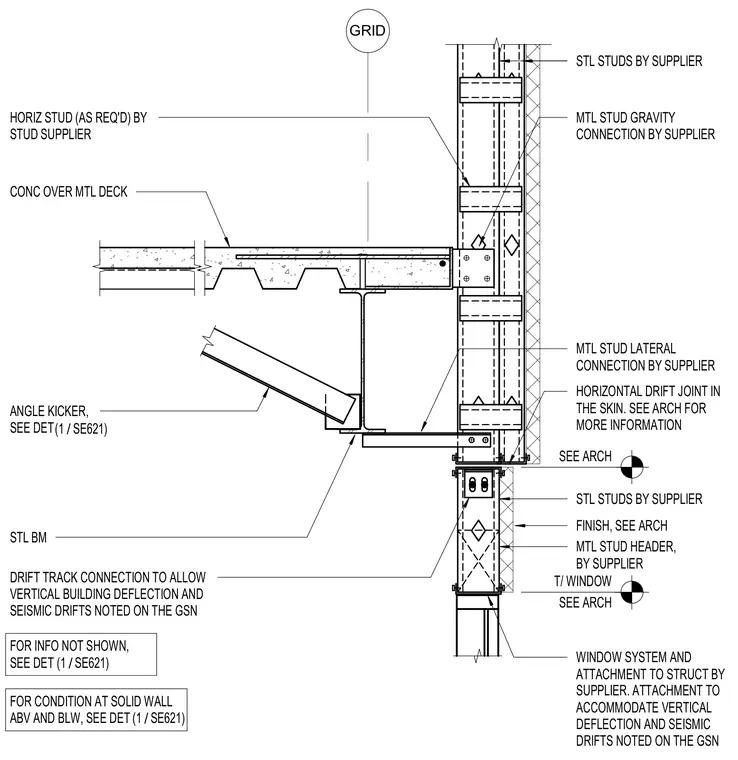

An exterior metal stud framing transition occurs at a window header and floor beam intersection. A concrete slab over a metal deck bears on a structural steel beam, which is supported below by an angle kicker. Metal studs feature gravity and lateral connections designed by the supplier to accommodate vertical building deflection and seismic drifts. A horizontal drift joint is incorporated into the exterior skin above the window header. The window system and its attachment to the structure are provided by the supplier to accommodate building movement.
GRID SEE ARCH STL STUDS BY SUPPLIER FINISH, SEE ARCH STL STUDS BY SUPPLIER MTL STUD GRAVITY CONNECTION BY SUPPLIER DRIFT TRACK CONNECTION TO ALLOW VERTICAL BUILDING DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN CONC OVER MTL DECK STL BM MTL STUD LATERAL CONNECTION BY SUPPLIER HORIZONTAL DRIFT JOINT IN THE SKIN. SEE ARCH FOR MORE INFORMATION HORIZ STUD (AS REQ'D) BY STUD SUPPLIER WINDOW SYSTEM AND ATTACHMENT TO STRUCT BY SUPPLIER. ATTACHMENT TO ACCOMMODATE VERTICAL DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN MTL STUD HEADER, BY SUPPLIER FOR INFO NOT SHOWN, SEE DET / (1 SE621) FOR CONDITION AT SOLID WALL ABV AND BLW, SEE DET / (1 SE621) T/ WINDOW SEE ARCH ANGLE KICKER, SEE DET / (1 SE621)
