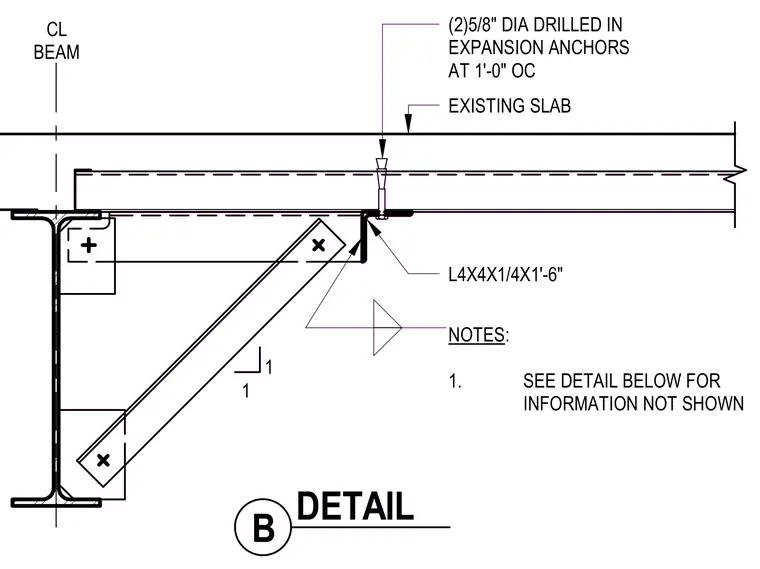

An L4x4x1/4-inch steel angle measuring one foot six inches long connects to an existing concrete slab using two five-eighths-inch diameter drilled-in expansion anchors spaced at one foot on center. The angle rests against a structural steel beam assembly featuring a diagonal brace and gusset plates. The assembly transfers loads from the slab bearing condition into the supporting steel framework.
EXISTING SLAB L4X4X1/4X1'-6" (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN 1 1 B DETAIL EXISTING SLAB L4X4X1/4X1'-6" (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN 1 1 B DETAIL
