Structural · S-YA6PR

Typical Braced Frame Protected Zones

Materials

Glass / Glazing

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Bolted Connection

About this detail

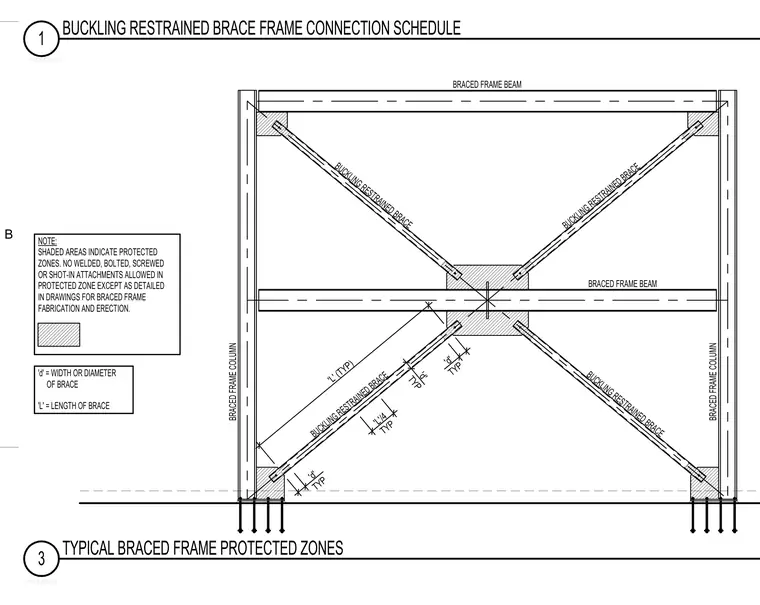

This structural diagram outlines the designated protected zones within a buckling restrained braced frame assembly comprising structural steel beams, columns, and braces. Shaded regions designate protected zones where welded, bolted, screwed, or shot-in attachments are prohibited unless explicitly detailed for fabrication and erection. Dimensional guidelines define these zones based on the width, diameter, and length of the brace members. Typical extents are mapped near the connection nodes at the top and bottom of the frame.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
