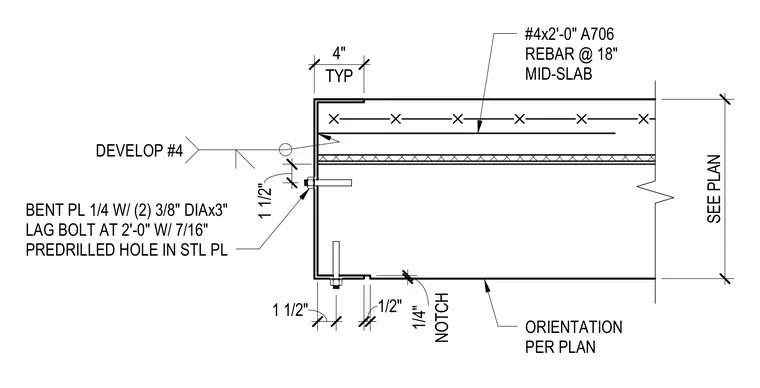

A quarter-inch bent steel plate runs along the slab edge, secured with two-inch by three-eighth-inch diameter lag bolts at two feet on center through seven-sixteenth-inch predrilled holes in the steel plate. Number four A706 reinforcing bars at two feet zero inches are placed at eighteen inches on center mid-slab with required development lengths. The concrete slab features a quarter-inch notch and an orientation per plan with a variable depth.
BENT PL 1/4 W/ (2) 3/8" DIAx3" LAG BOLT AT 2'-0" W/ 7/16" PREDRILLED HOLE IN STL PL ORIENTATION PER PLAN #4x2'-0" A706 REBAR @ 18" MID-SLAB TYP 4" 1/2" SEE PLAN NOTCH 1/4" DEVELOP #4 1 1/2" 1 1/2"
