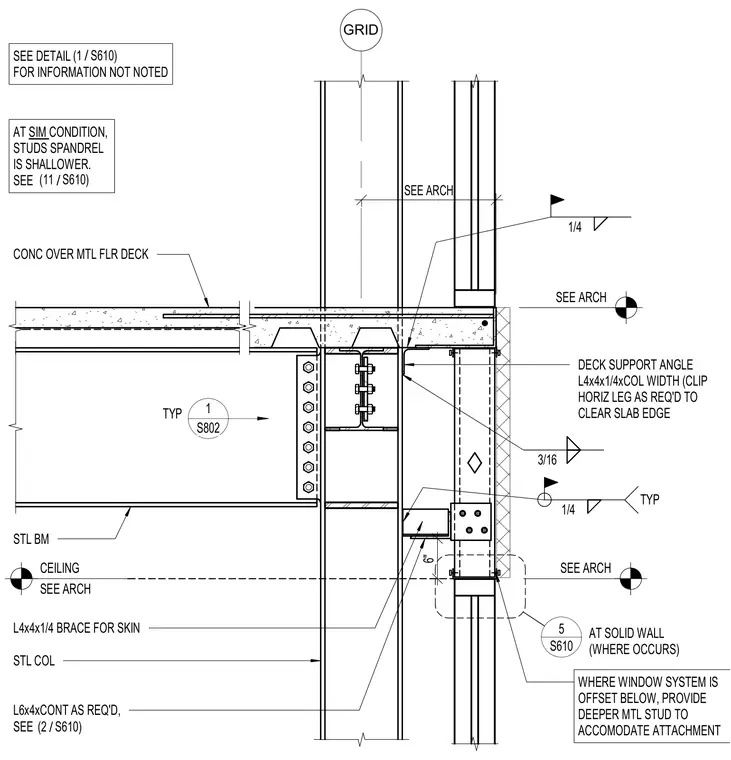

A structural steel exterior column connects to a concrete over metal floor deck and supporting steel beam. A deck support angle sized L4x4x1/4 spans the column width and attaches, with the horizontal leg clipped as required to clear the slab edge. An L4x4x1/4 brace for the building skin connects to the steel column, supplemented by continuous L6x4 angles as required. Fillet welds of 1/4-inch and 3/16-inch sizes are indicated at structural intersections. Where window systems are offset below, a deeper metal stud is provided to accommodate attachment.
SEE DETAIL FOR INFORMATION NOT NOTED SEE ARCH GRID SEE ARCH 6" CEILING SEE ARCH CONC OVER MTL FLR DECK DECK SUPPORT ANGLE L4x4x1/4xCOL WIDTH (CLIP HORIZ LEG AS REQ'D TO CLEAR SLAB EDGE STL BM L4x4x1/4 BRACE FOR SKIN STL COL L6x4xCONT AS REQ'D, SEE 1/4 3/16 1/4 TYP / (1 S610) / (2 S610) S610 5 AT SOLID WALL (WHERE OCCURS) / (11 S610) AT SIM CONDITION, STUDS SPANDREL IS SHALLOWER. SEE WHERE WINDOW SYSTEM IS OFFSET BELOW, PROVIDE DEEPER MTL STUD TO ACCOMODATE ATTACHMENT 1 S802 TYP SEE ARCH
