Structural · S-Y9ZMA

Cold Rolled Channel and Bridgeclip Bracing at Steel Stud Framing

Materials

Elements

Columns Bearing Walls Bracing Connections / Plates

About this detail

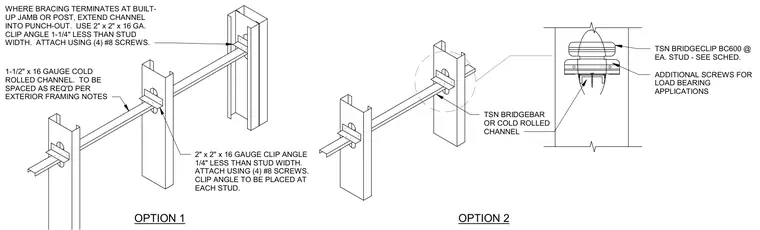

Where bracing terminates at a built-up jamb or post, the cold rolled channel extends into the punch-out. A two-inch by two-inch by sixteen-gauge clip angle, one-quarter inch less than the stud width, is attached using four number-eight screws at each stud. Alternatively, a TSN bridgebar or cold rolled channel is installed with a TSN bridgeclip BC600 at each stud, supplemented by additional screws for load-bearing applications. The one-and-a-half-inch by sixteen-gauge cold rolled channel is spaced as required per exterior framing notes.
