Structural · S-Y9WTE

Structural Steel Frame Column Bevel and Lift Plate Connection

Materials

weld

Elements

Bracing

Connections

Braced Frame Connection Welded Connection Rebar Splice / Development

About this detail

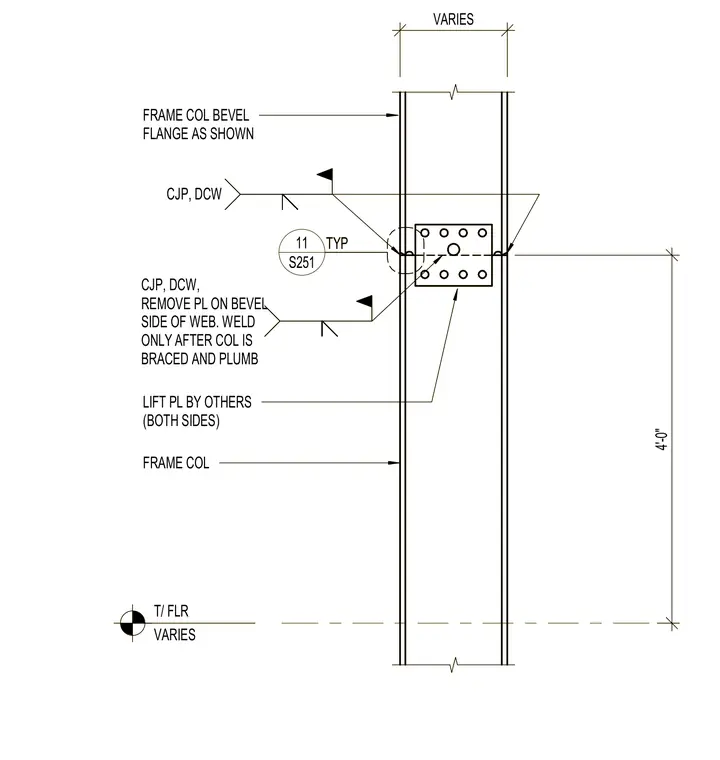

The steel frame column features a beveled flange as shown with complete joint penetration and double-bevel groove welds. A removable plate is specified on the bevel side of the web, and lift plates are provided on both sides by others. The column splice is welded only after the column is fully braced and plumbed. Dimensions indicate a typical four-foot offset above the top of floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
