Structural · S-Y9RRS

Steel Beam Connection to Existing Steel Beam

About this detail

A new steel beam connects to an existing structural steel beam following the standard structural steel beam connection detail.

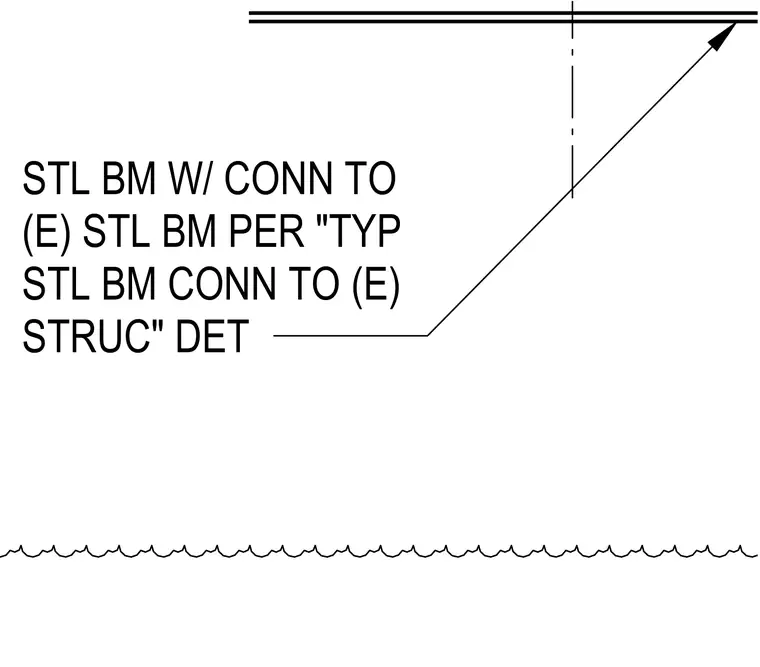

STL BM W/ CONN TO (E) STL BM PER "TYP STL BM CONN TO (E) STRUC" DET

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
