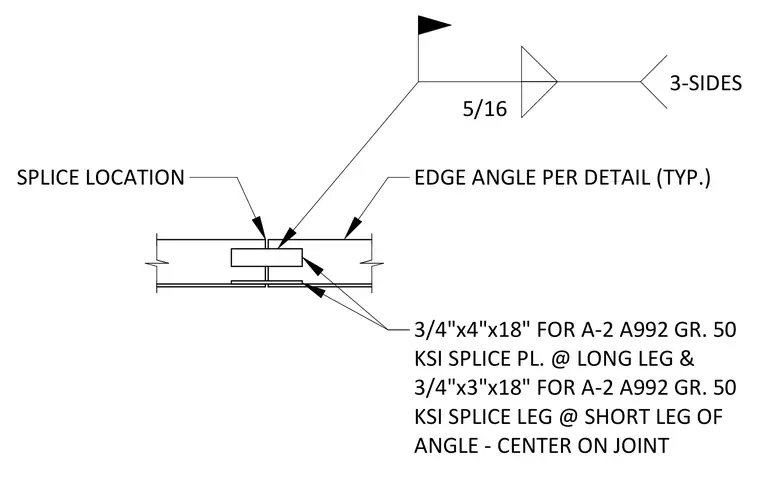

Two steel edge angles join at a splice location. A three-quarter inch by four inch by eighteen inch ASTM A992 Grade 50 KSI splice plate centers on the joint at the long leg of the angle. A three-quarter inch by three inch by eighteen inch ASTM A992 Grade 50 KSI splice plate centers on the joint at the short leg of the angle. A five-sixteenths inch fillet weld applied to three sides of the splice plates secures the connection.
Text on the drawing
EDGE ANGLE PER DETAIL (TYP.) SPLICE LOCATION EDGE ANGLE PER DETAIL (TYP.) SPLICE LOCATION 3/4"x4"x18" FOR A-2 A992 GR. 50 KSI SPLICE PL. @ LONG LEG & 3/4"x3"x18" FOR A-2 A992 GR. 50 KSI SPLICE LEG @ SHORT LEG OF ANGLE - CENTER ON JOINT OPTION 1 OPTION 2 5/16 3-SIDES C.J.P.
