A cable tray is supported by a trapeze channel suspended from above by threaded rods with rod stiffeners. Diagonal cable braces attach to the ends of the trapeze channel to provide seismic restraint, rated for fifty pounds maximum. The cable tray rests directly on and makes direct attachment to the trapeze channel support member.

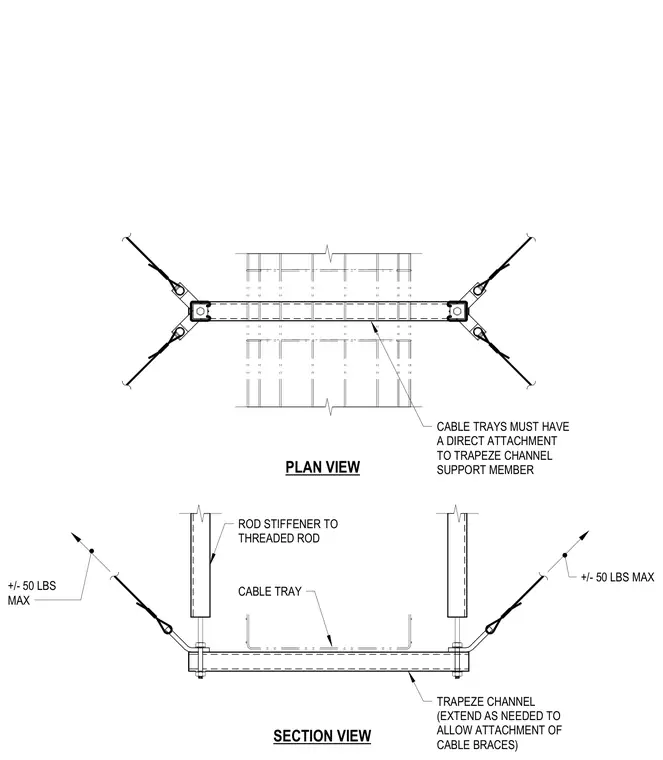

PLAN VIEW SECTION VIEW ROD STIFFENER TO THREADED ROD TRAPEZE CHANNEL (EXTEND AS NEEDED TO ALLOW ATTACHMENT OF CABLE BRACES) CABLE TRAYS MUST HAVE A DIRECT ATTACHMENT TO TRAPEZE CHANNEL SUPPORT MEMBER CABLE TRAY +/- 50 LBS MAX +/- 50 LBS MAX
