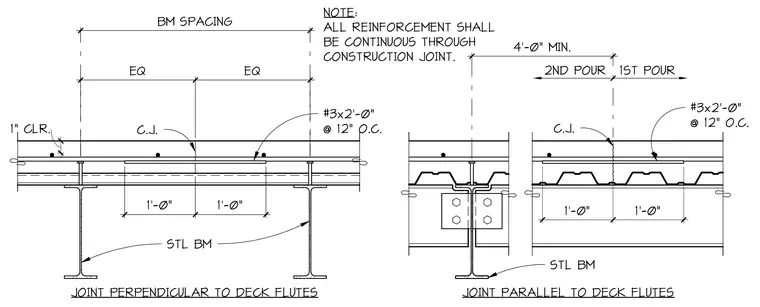

Concrete slab on composite steel deck supported by steel beams features a construction joint reinforced with number three bars measuring two feet long spaced at twelve inches on center. The joint details illustrate conditions both perpendicular and parallel to the deck flutes with a minimum four foot pour break and one inch clearance. All reinforcement remains continuous through the construction joint across sequential concrete pours.
4'-0" MIN. 1'-0" 1'-0" EQ EQ BM SPACING 1ST POUR 2ND POUR 1'-0" 1'-0" C.J. #3x2'-0" @ 12" O.C. JOINT PARALLEL TO DECK FLUTES NOTE: ALL REINFORCEMENT SHALL BE CONTINUOUS THROUGH CONSTRUCTION JOINT. JOINT PERPENDICULAR TO DECK FLUTES C.J. #3x2'-0" @ 12" O.C. STL BM STL BM 1" CLR.
