A concrete masonry unit wall connects to a concrete slab with two continuous number five bottom dowels and vertical reinforcing bars anchored with alternate hooks. A forty-eight bar diameter lap splice connects the vertical wall reinforcing to the dowels extending from the slab. The concrete slab features a thickened edge beneath the wall with a width of one foot six inches. Typical slab reinforcing is sized per plan, and elevated slab conditions remain similar to the slab on grade shown.

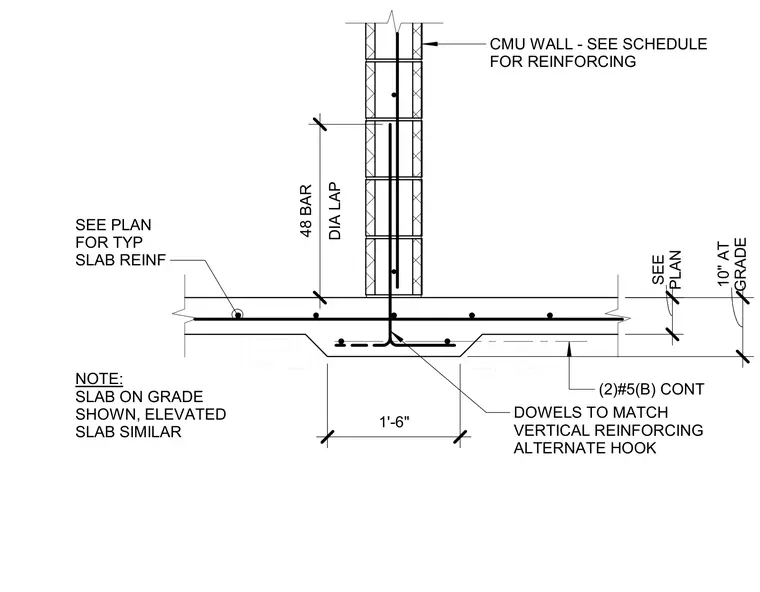

SEE PLAN FOR TYP SLAB REINF NOTE: SLAB ON GRADE SHOWN, ELEVATED SLAB SIMILAR (2)#5(B) CONT DOWELS TO MATCH VERTICAL REINFORCING ALTERNATE HOOK CMU WALL - SEE SCHEDULE FOR REINFORCING 1'-6" PLAN SEE GRADE 10" AT DIA LAP 48 BAR
