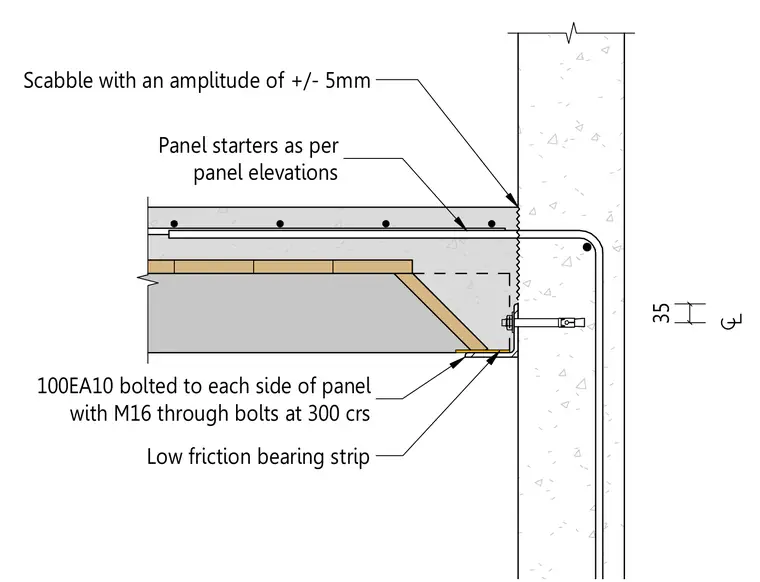

A precast concrete rib and infill floor system bears directly on the edge of a precast concrete wall panel. A low friction bearing strip sits beneath the rib member on a 100EA10 equal angle bracket bolted to each side of the panel with M16 through bolts at 300 mm centers. Panel starter bars extend from the panel into the topping slab as specified on the panel elevations. The abutting concrete interface is scabbled with an amplitude of plus or minus 5 millimeters to ensure proper bonding.
100EA10 bolted to each side of panel with M16 through bolts at 300 crs Panel starters as per panel elevations Scabble with an amplitude of +/- 5mm Low friction bearing strip 35
