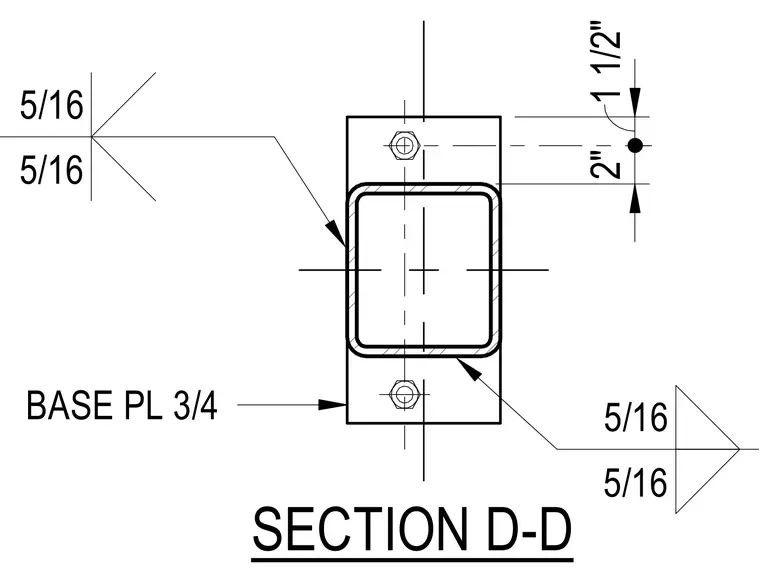

A hollow structural section column connects to a three-quarter-inch steel base plate secured by anchor bolts. Five-sixteenth-inch fillet welds join the column profile to the base plate around the perimeter. Dimensions indicate edge distances and bolt spacings from the structural centerlines.
