Canopy and Glazing Connection Details at Steel Framing

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Facades / Cladding Roofs Canopies Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Rebar Splice / Development Deck Attachment

About this detail

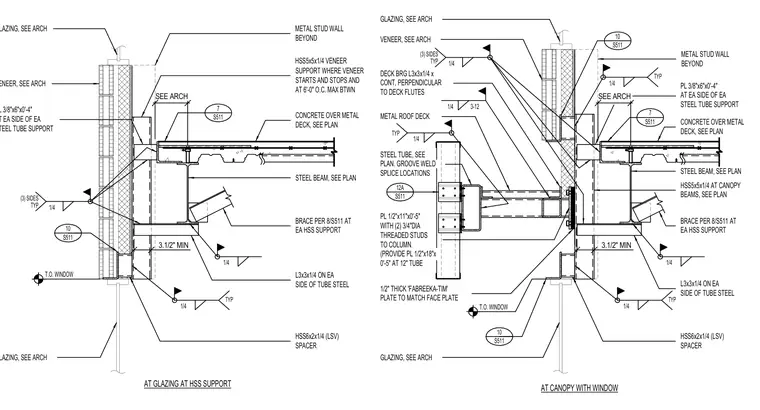

Canopy and glazing connections are supported by steel hollow structural sections and framing members. A 1/2-inch thick Fabreeka-TIM pad matches the face plate, secured via a 1/2"x11"x0'-5" plate with two 3/4-inch diameter threaded studs to the column, and an alternative 1/2"x18"x0'-5" plate at twelve-inch tube steel locations. Tube steel supports utilize 3/8"x6"x0'-4" plates on each side welded with typical quarter-inch fillet welds on three sides, alongside L3x3x1/4 angles on each side of the tube. Concrete over metal deck floor assemblies tie into structural steel beams with HSS5x5x1/4 veneer supports and angle bracing per detail 8/S511 at each HSS support.
