Electrical · S-Y8663

Home-Run to Security and Reception Desk

Elements

About this detail

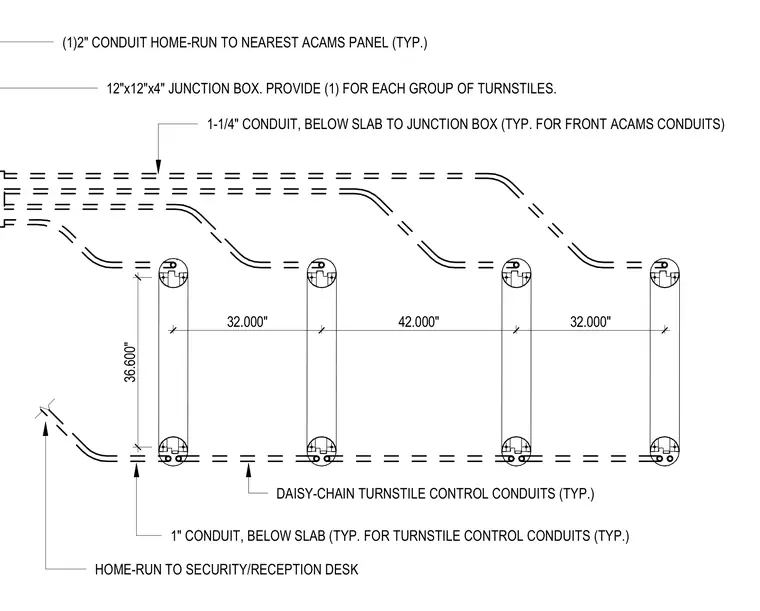

Turnstile control conduits run below the slab with daisy-chain connections and specific spacing dimensions of thirty-two inches, forty-two inches, and thirty-six point six inches. One-inch conduits serve the turnstile controls, while one-and-a-quarter-inch conduits run below the slab to a twelve-by-twelve-by-four-inch junction box provided for each group of turnstiles. A two-inch conduit provides a home-run to the nearest ACAMS panel, and another home-run connects to the security and reception desk.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
