A vertical step occurs in a reinforced concrete mat slab foundation. Top and bottom reinforcing bar mats run continuously through the upper and lower slab levels, transitioning along the sloped step. Reinforcement at the step matches the size and spacing of the top rebar mat per plan. A Z-bar ties the top and bottom levels together at the vertical transition, featuring a three-foot minimum lap splice. Contractors are given the option to provide a continuous bar in lieu of the standard lap splice along the bottom mat. An overframing slab is included where it occurs above the stepped transition.

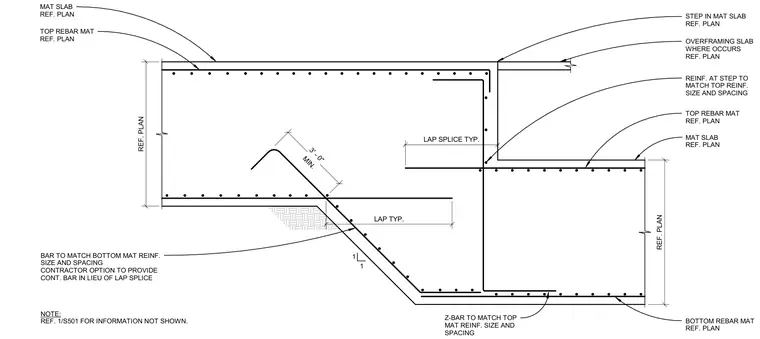

STEP IN MAT SLAB REF. PLAN MAT SLAB REF. PLAN TOP REBAR MAT REF. PLAN Z-BAR TO MATCH TOP MAT REINF. SIZE AND SPACING TOP REBAR MAT REF. PLAN MAT SLAB REF. PLAN BOTTOM REBAR MAT REF. PLAN OVERFRAMING SLAB WHERE OCCURS REF. PLAN BAR TO MATCH BOTTOM MAT REINF. SIZE AND SPACING CONTRACTOR OPTION TO PROVIDE CONT. BAR IN LIEU OF LAP SPLICE NOTE: REF. 1/S501 FOR INFORMATION NOT SHOWN. REINF. AT STEP TO MATCH TOP REINF. SIZE AND SPACING REF. PLAN REF. PLAN 1 1 LAP SPLICE TYP. LAP TYP. MIN. 3' - 0"
