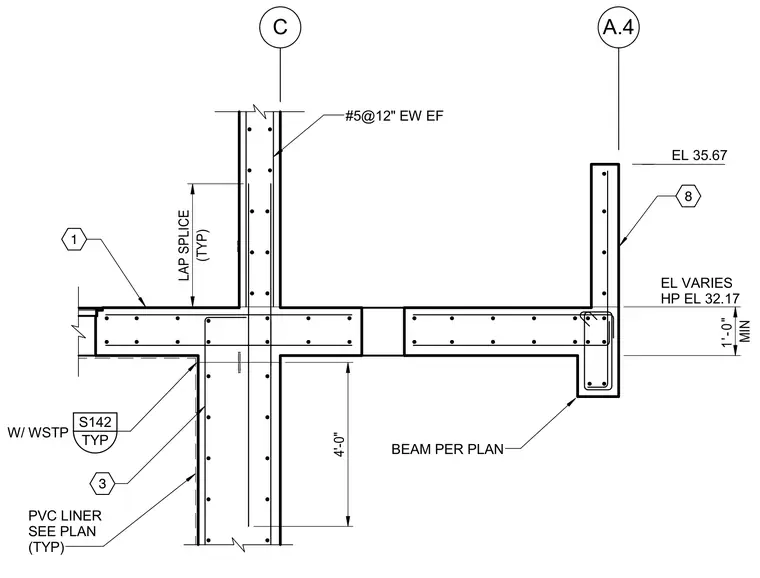

A reinforced concrete wall assembly features number 5 reinforcing bars spaced at twelve inches each way, each face, as typical reinforcement. A PVC liner is detailed per plan along the inner face. Vertical and horizontal rebar connections include a minimum one-foot lap splice. Elevation markers indicate varying levels including elevation 35.67 and high point elevation 32.17.
C A.4 8 3 1 #5@12" EW EF TYP S142 W/ WSTP 4'-0" (TYP) LAP SPLICE MIN 1'-0" EL 35.67 EL VARIES HP EL 32.17 BEAM PER PLAN PVC LINER SEE PLAN (TYP)
