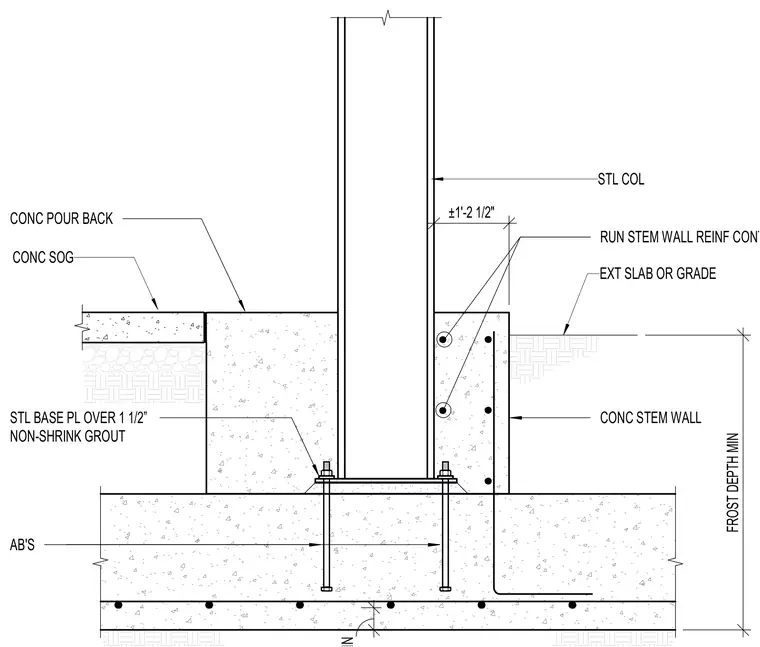

A steel column bears on a steel base plate set over one and a half inches of non-shrink grout atop a concrete foundation and stem wall. Anchor bolts secure the base plate into the concrete foundation below. Continuous stem wall reinforcement extends around the column base, with a concrete pour back adjacent to the concrete slab on grade.
CONC STEM WALL EXT SLAB OR GRADE STL COL STL BASE PL OVER 1 1/2” NON-SHRINK GROUT CONC SOG CONC POUR BACK AB'S RUN STEM WALL REINF CONT FROST DEPTH MIN ±1'-2 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
