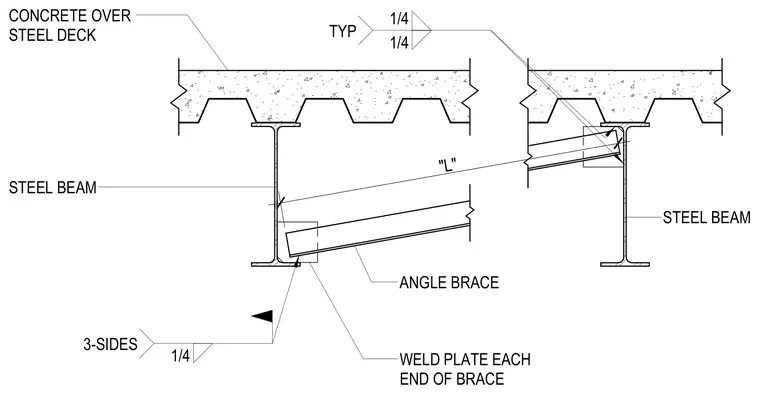

An angle brace connects to the web and bottom flange of a structural steel beam supporting a concrete slab over a steel deck. A weld plate is secured at each end of the brace using one-quarter-inch fillet welds applied on three sides. The connection restrains the bottom flange against lateral torsional buckling.
STEEL BEAM CONCRETE OVER STEEL DECK STEEL BEAM ANGLE BRACE WELD PLATE EACH END OF BRACE 1/4 3-SIDES 1/4 1/4 TYP "L"
