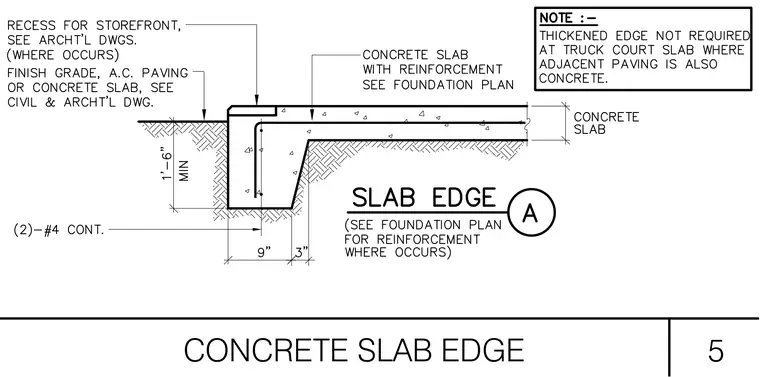

This structural detail shows a reinforced concrete slab edge with a thickened perimeter extending one foot six inches minimum below grade. Two continuous number four rebars are placed in the thickened footing section, with further reinforcement sized per the foundation plan. A recess for storefront is detailed at the top exterior edge where indicated on architectural drawings. Finish grade consists of asphalt concrete paving or a concrete slab coordinated with civil and architectural drawings, noting that thickened edges are not required at truck court slabs where adjacent paving is also concrete.
