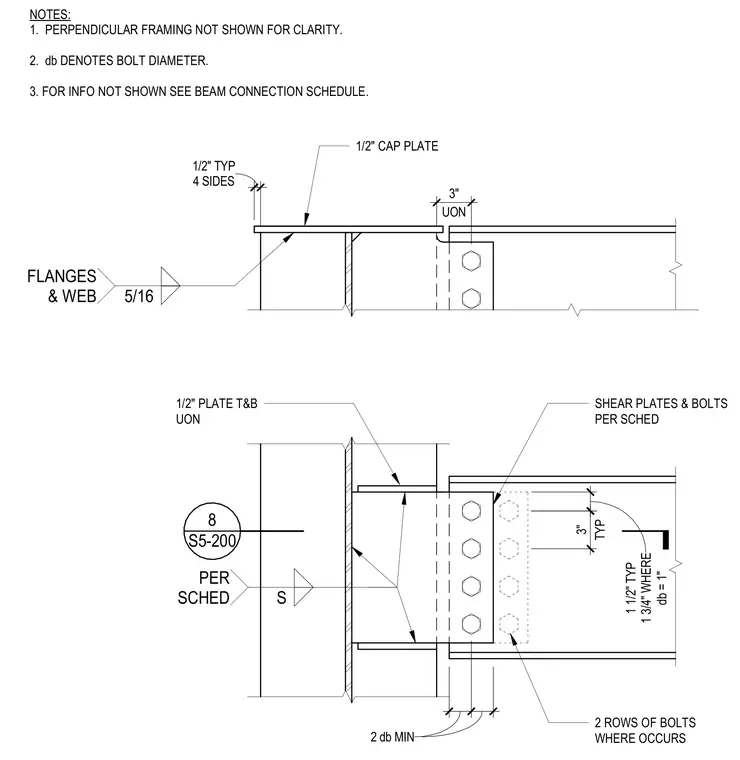

A structural steel beam frames into a wide-flange column web using shear plates and bolts sized per schedule. A one-half-inch top and bottom plate connects the assembly, with a one-half-inch cap plate welded to the column flanges. Five-sixteenth-inch fillet welds secure the flanges and web unless noted otherwise. Two rows of bolts are provided where indicated, maintaining a minimum edge distance of two times the bolt diameter.
8 S5-200 TYP 3" db = 1" 1 1/2" TYP 1 3/4" WHERE 2 ROWS OF BOLTS WHERE OCCURS SHEAR PLATES & BOLTS PER SCHED 4 SIDES 1/2" TYP 1/2" CAP PLATE 1/2" PLATE T&B UON 2 db MIN UON 3" 5/16 FLANGES & WEB S PER SCHED NOTES: 1. PERPENDICULAR FRAMING NOT SHOWN FOR CLARITY. 2. db DENOTES BOLT DIAMETER. 3. FOR INFO NOT SHOWN SEE BEAM CONNECTION SCHEDULE.
