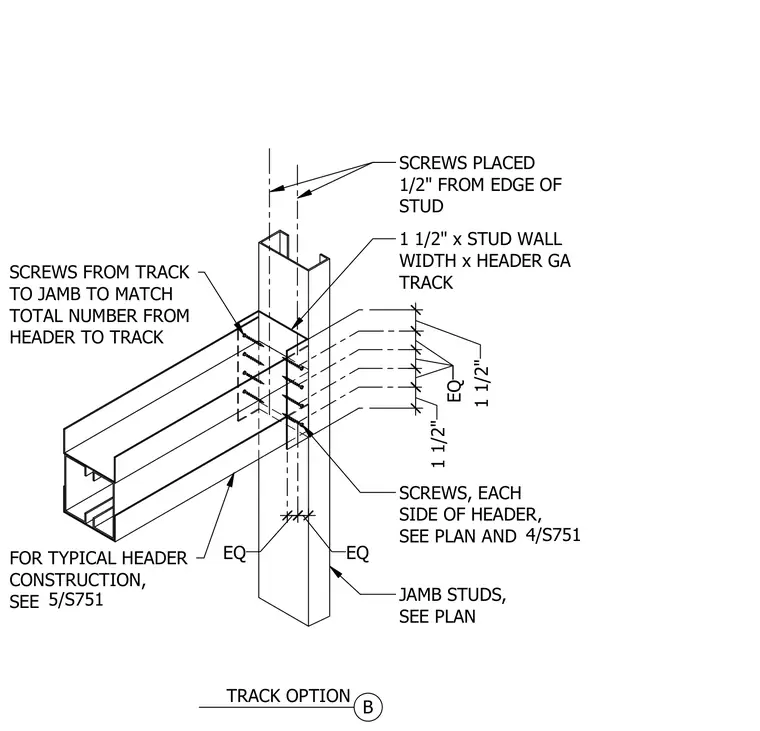

Cold-formed steel framing details show a header track intersecting vertical jamb studs with equally spaced screws on each side of the header. Screws are placed one-half inch from the edge of the stud, and track-to-jamb screws match the total number from the header to the track. Additional track options and typical header construction are referenced by sheet callouts.
JAMB STUDS, SEE PLAN SCREWS PLACED 1/2" FROM EDGE OF STUD SCREWS, EACH SIDE OF HEADER, SEE PLAN AND EQ EQ 1 1/2" 1 1/2" EQ EQ EQ SCREWS FROM TRACK TO JAMB TO MATCH TOTAL NUMBER FROM HEADER TO TRACK 1 1/2" x STUD WALL WIDTH x HEADER GA TRACK FOR TYPICAL HEADER CONSTRUCTION, SEE 5/S751 4/S751 B TRACK OPTION
