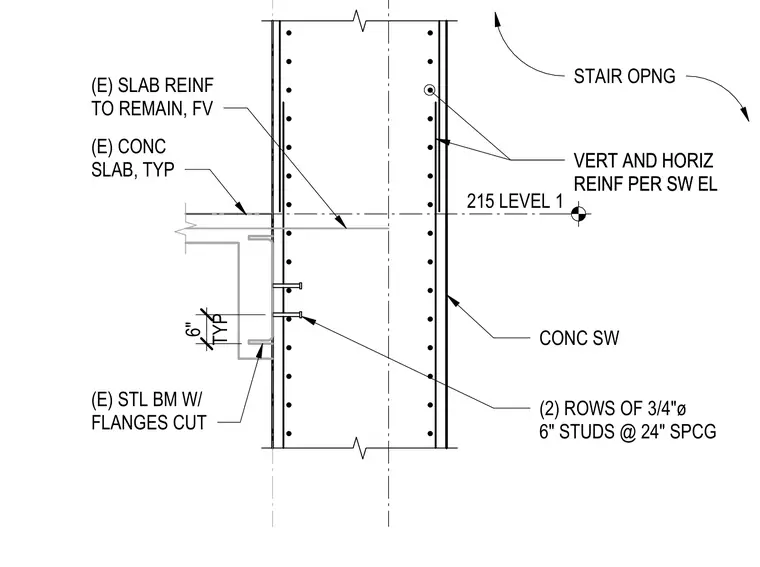

A six-inch concrete shear wall connects to an existing steel beam with its flanges cut, anchored by two rows of three-quarter-inch diameter by six-inch studs spaced at twenty-four inches vertically and horizontally. Existing concrete slab reinforcement remains at the stair opening, with vertical and horizontal reinforcing detailed per the shear wall elevation. Level 1 is established at elevation 215.
CONC SW TYP 6" 215 LEVEL 1 (E) CONC SLAB, TYP (E) STL BM W/ FLANGES CUT (2) ROWS OF 3/4"ø 6" STUDS @ 24" SPCG VERT AND HORIZ REINF PER SW EL VERT AND HORIZ REINF PER SW EL STAIR OPNG (E) SLAB REINF TO REMAIN, FV
