Wall stud framing is configured with matching spacing at sixteen inches on center to align backing with screws. A minimum of two screws or anchors per row are required at each framing connection. Equipment with a maximum weight of three hundred pounds mounts within dimensions determined per electrical requirements.

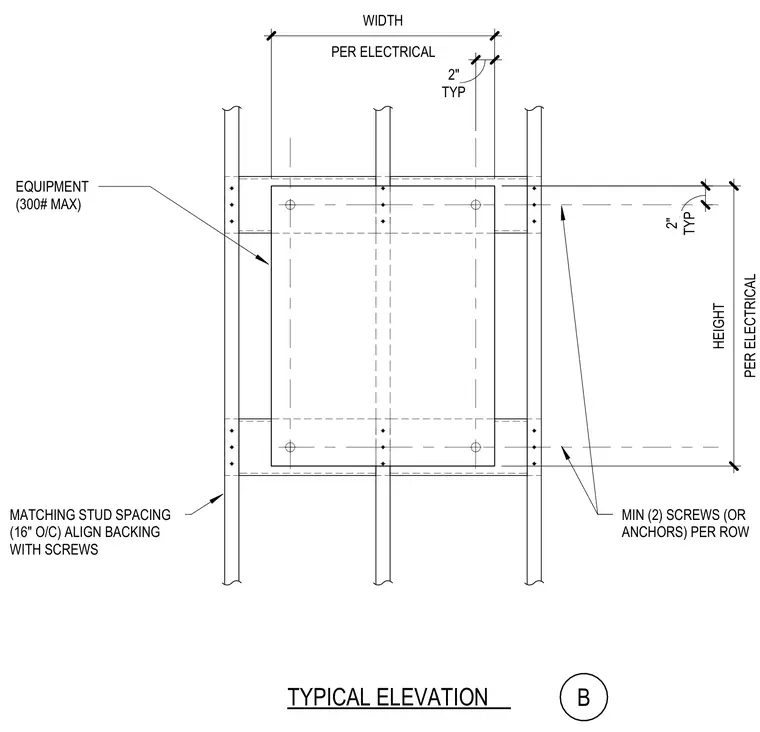

MATCHING STUD SPACING (16" O/C) ALIGN BACKING WITH SCREWS MIN (2) SCREWS (OR ANCHORS) PER ROW TYPICAL ELEVATION PER ELECTRICAL HEIGHT PER ELECTRICAL WIDTH B TYP 2" TYP 2" EQUIPMENT (300# MAX)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
