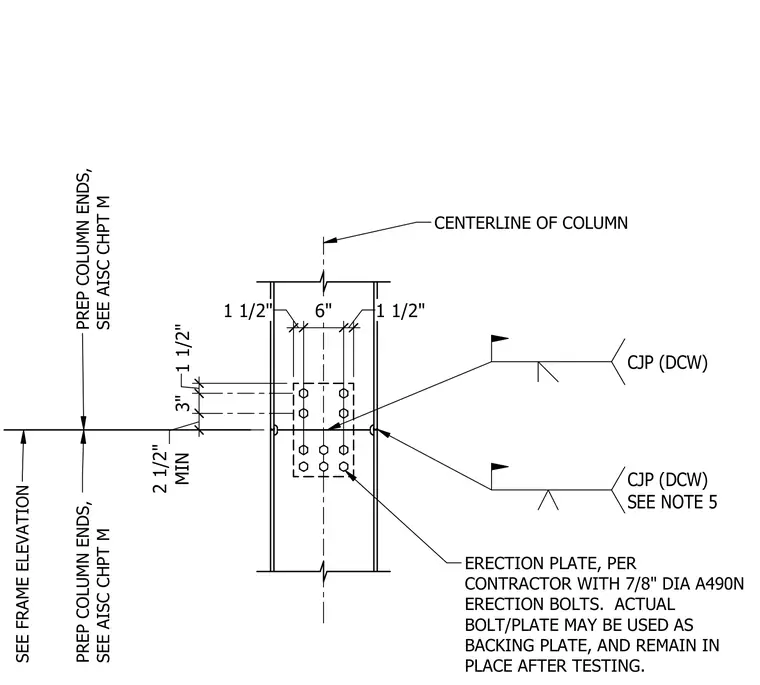

This structural steel column splice detail features complete joint penetration welds with double-bevel grooves on the column ends per AISC Chapter M. An erection plate sized per the contractor is fastened with seven-eighths-inch-diameter A490N erection bolts arranged in a symmetric pattern. The erection plate and bolts may serve as a backing plate and remain in place following testing. Column end preparation must follow AISC Chapter M guidelines relative to the frame elevation centerline.
CJP (DCW) SEE NOTE 5 CENTERLINE OF COLUMN PREP COLUMN ENDS, SEE AISC CHPT M PREP COLUMN ENDS, SEE AISC CHPT M SEE FRAME ELEVATION 1 1/2" 6" 1 1/2" ERECTION PLATE, PER CONTRACTOR WITH 7/8" DIA A490N ERECTION BOLTS. ACTUAL BOLT/PLATE MAY BE USED AS BACKING PLATE, AND REMAIN IN PLACE AFTER TESTING. MIN 2 1/2" 3" 1 1/2" CJP (DCW)
