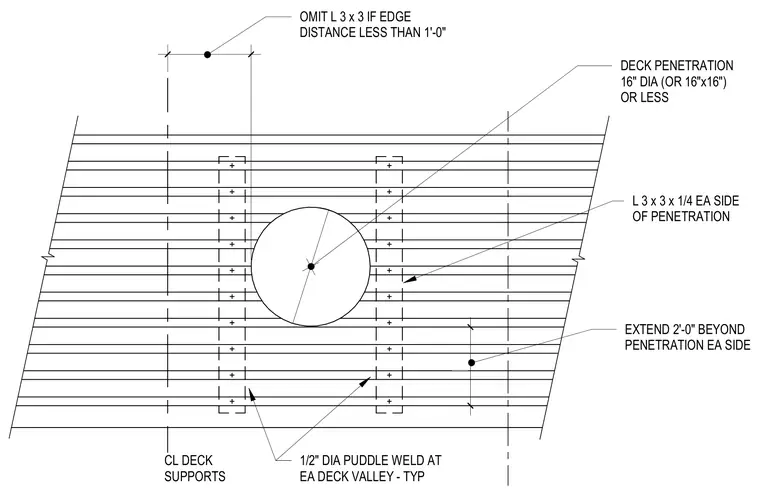

Deck penetrations measuring sixteen inches in diameter or square or less are reinforced with three-by-three by one-quarter-inch structural angles placed on each side of the opening. These framing angles extend two feet beyond the penetration on each side and are secured with one-half-inch diameter puddle welds at each deck valley. The reinforcement angles are omitted if the edge distance to a support is less than one foot.
OMIT L 3 x 3 IF EDGE DISTANCE LESS THAN 1'-0" DECK PENETRATION 16" DIA (OR 16"x16") OR LESS L 3 x 3 x 1/4 EA SIDE OF PENETRATION EXTEND 2'-0" BEYOND PENETRATION EA SIDE 1/2" DIA PUDDLE WELD AT EA DECK VALLEY - TYP CL DECK SUPPORTS
