Structural · S-Y6CD2

Buckling-Restrained Braced Frame Gusset Connection at Steel Column

Materials

Concrete Steel

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

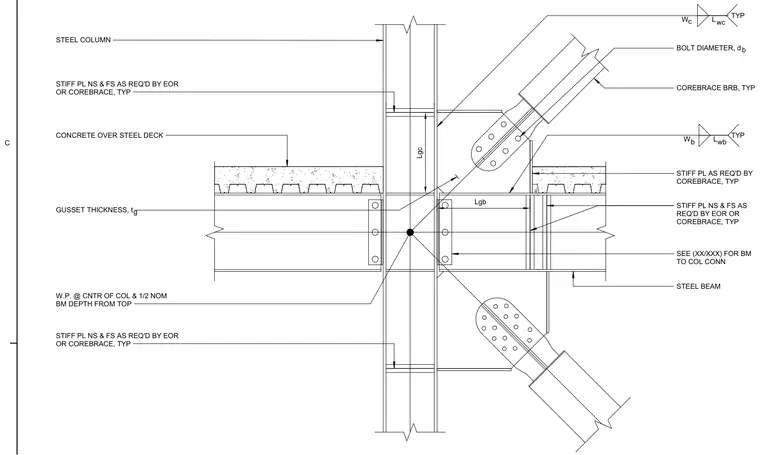

A structural steel column intersects with a steel beam and buckling-restrained braces at a designated work point located at the center of the column and one-half the nominal beam depth from the top. Gusset plates connect the braces to the column and beam web, with plate thickness designated as tg and length dimensions Lgb and Lgc. Stiffener plates are provided near side and far side as required by the engineer of record or manufacturer. Concrete over steel deck abuts the column assembly on either side. Welds and bolt diameters are specified throughout the connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
