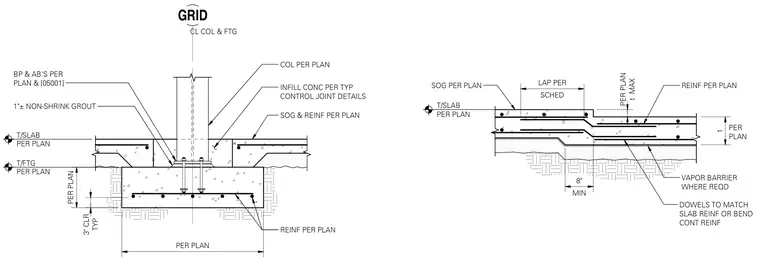

A concrete spread footing supports a structural column bearing on a base plate with anchor bolts and one inch of non-shrink grout over the footing top. Infill concrete surrounds the column base per typical control joint details, transitioning to a slab on grade with specified reinforcing and vapor barrier where required. A separate slab step condition shows slab reinforcement laps with an eight inch minimum lap length and dowels matching the slab reinforcement or continuous bent reinforcing.
t t MAX PER PLAN SOG PER PLAN REINF PER PLAN VAPOR BARRIER WHERE REQD DOWELS TO MATCH SLAB REINF OR BEND CONT REINF MIN 8" SCHED LAP PER PER PLAN T/SLAB PER PLAN PER PLAN PER PLAN COL PER PLAN INFILL CONC PER TYP CONTROL JOINT DETAILS SOG & REINF PER PLAN REINF PER PLAN 1"± NON-SHRINK GROUT GRID TYP 3" CLR BP & AB'S PER PLAN & [05001] CL COL & FTG T/SLAB PER PLAN T/FTG PER PLAN
