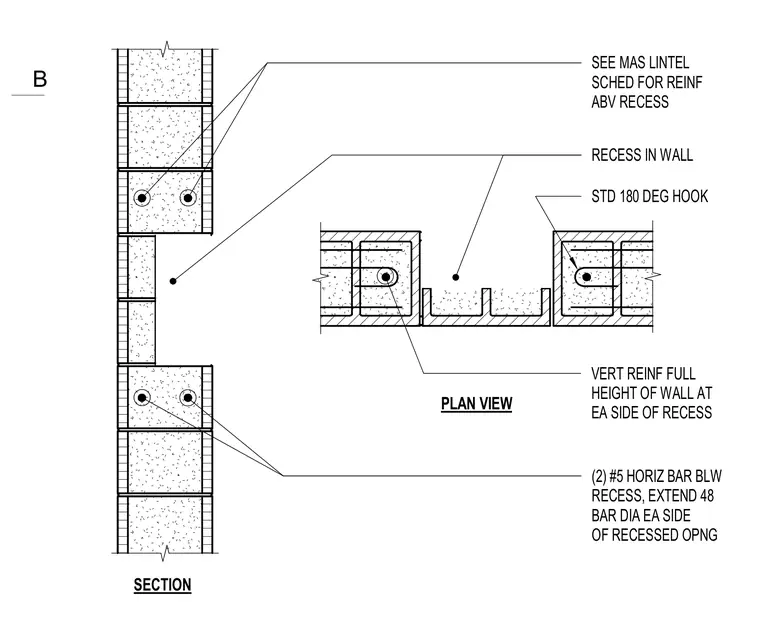

A concrete masonry unit wall features a recessed opening detailed in both section and plan views. Vertical reinforcing bars run full height at each side of the recess inside the masonry cells, terminating with standard 180-degree hooks. Two number 5 horizontal bars are placed below the recess and extend forty-eight bar diameters past each side of the opening. Lintel reinforcement above the recess is sized per the masonry lintel schedule.
SEE MAS LINTEL SCHED FOR REINF ABV RECESS RECESS IN WALL STD 180 DEG HOOK VERT REINF FULL HEIGHT OF WALL AT EA SIDE OF RECESS (2) #5 HORIZ BAR BLW RECESS, EXTEND 48 BAR DIA EA SIDE OF RECESSED OPNG PLAN VIEW SECTION B
