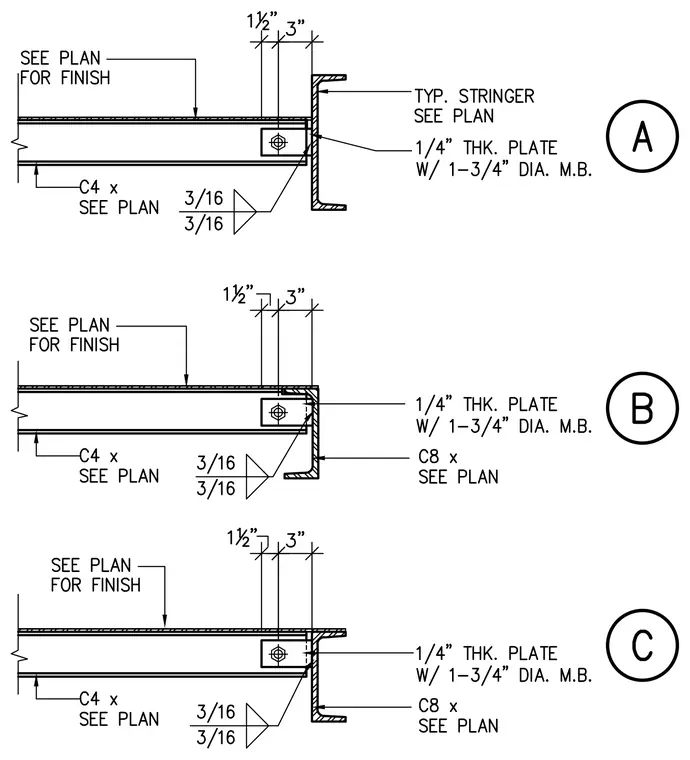

Three connection conditions show a C4 channel stringer framed into channel supports using a quarter-inch thick plate secured with a three-quarter-inch diameter machine bolt. The assembly is welded with three-sixteenth-inch fillet welds, with stringer sizes and finishes sized per plan.
