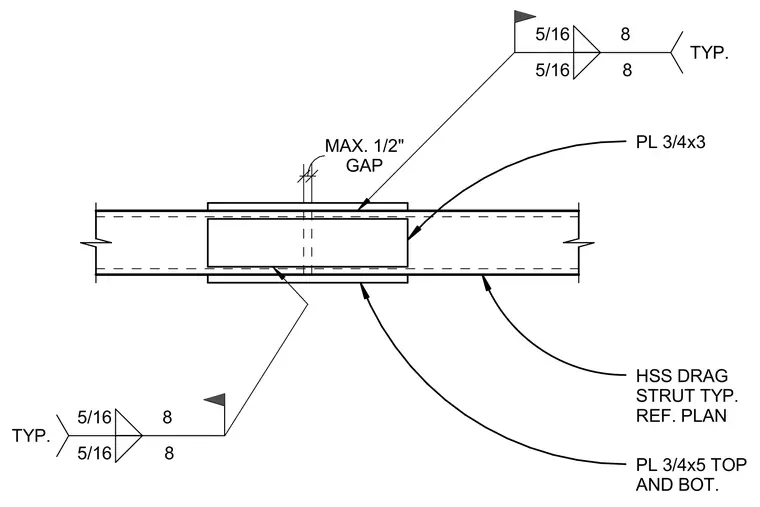

A hollow structural section drag strut splice connection utilizes top and bottom splice plates measuring three-quarters of an inch by five inches, accompanied by plates measuring three-quarters of an inch by three inches. The assembly accommodates a maximum one-half inch gap. Five-sixteenths inch fillet welds with eight-inch spacing are applied typically along the connections.
5/16 8 5/16 8 TYP. 5/16 8 5/16 8 TYP. HSS DRAG STRUT TYP. REF. PLAN PL 3/4x3 PL 3/4x5 TOP AND BOT. GAP MAX. 1/2"
