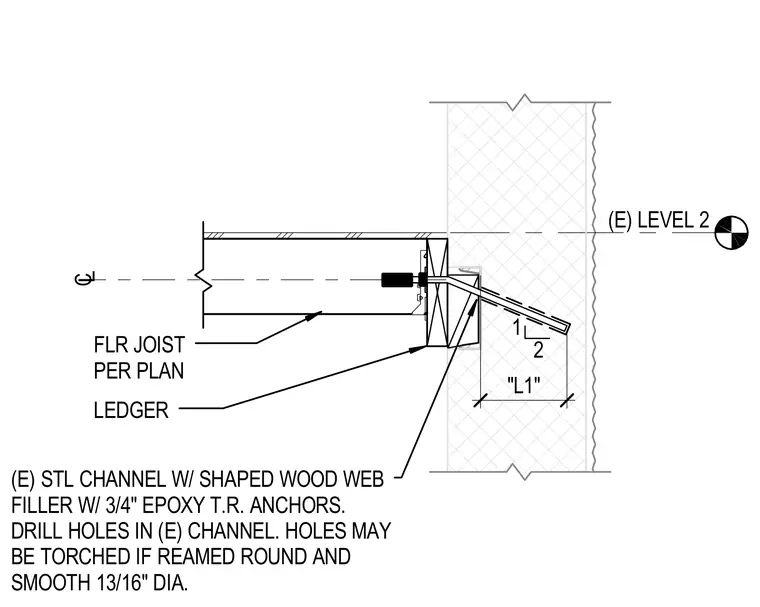

Floor joist per plan connects to an existing steel channel equipped with a shaped wood web filler. The steel channel is anchored into the existing wall assembly using three-quarter-inch epoxy threaded rod anchors. Holes are drilled in the existing channel, with torched holes permitted provided they are reamed round and smooth to thirteen-sixteenths of an inch in diameter.
FLR JOIST PER PLAN (E) STL CHANNEL W/ SHAPED WOOD WEB FILLER W/ 3/4" EPOXY T.R. ANCHORS. DRILL HOLES IN (E) CHANNEL. HOLES MAY BE TORCHED IF REAMED ROUND AND SMOOTH 13/16" DIA. (E) LEVEL 2 LEDGER 2 1 L C "L1"
