Structural · S-Y4VQJ

Typical Brace Connection at Steel Beam

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

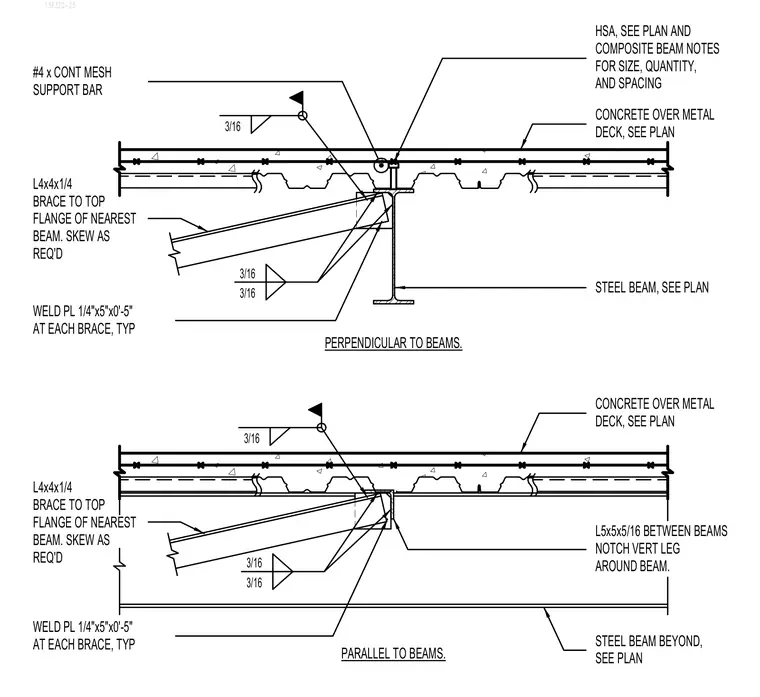

A structural brace connection occurs at a steel beam supporting concrete over a metal deck. The assembly utilizes an L4x4x1/4 angle brace connected to the top flange of the nearest beam and skewed as required, with a 1/4 inch by 5 inch by 0 foot 5 inch plate welded at each brace using 3/16 inch fillet welds. A continuous number 4 mesh support bar and shear connectors are embedded in the concrete over the metal deck, sized per plan. An L5x5x5/16 angle is positioned between beams with the vertical leg notched around the beam for parallel orientations. All structural steel elements and connections are welded as indicated with three-sixteenths inch welds.
