Floor trusses bear on framing supporting lightweight concrete per architectural specifications, bounded by a 3 1/2-inch laminated strand lumber rim board. Boundary nailing connects upper and lower shear walls through the floor assembly. Full-depth laminated strand lumber blocking is installed at 48 inches on center minimum at end and mid-walls with four 10d nails through the sheathing from above. Shear transfer is detailed per the shear wall schedule and structural plans.

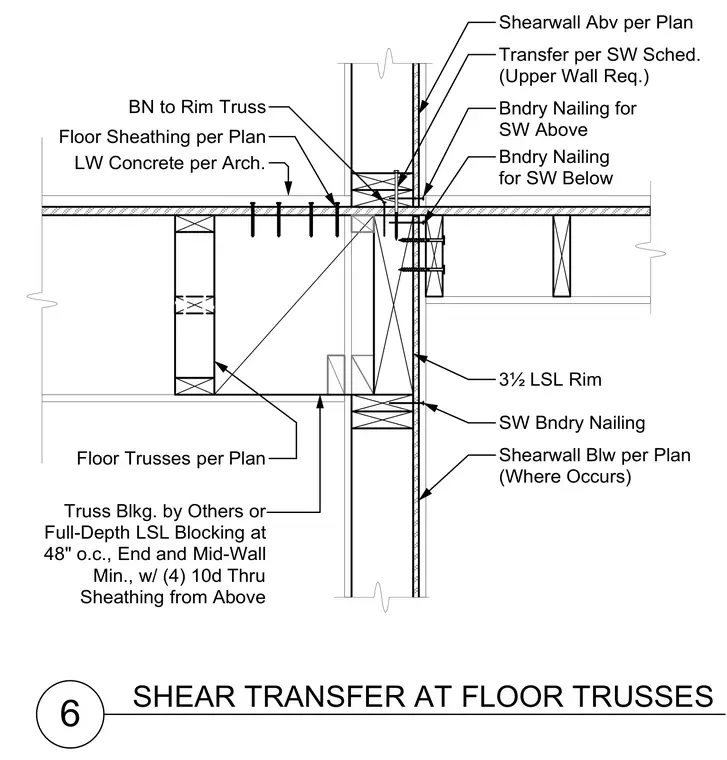

6 SHEAR TRANSFER AT FLOOR TRUSSES Shearwall Abv per Plan Floor Sheathing per Plan Floor Trusses per Plan Shearwall Blw per Plan (Where Occurs) SW Bndry Nailing 3½ LSL Rim BN to Rim Truss Bndry Nailing for SW Above LW Concrete per Arch. Truss Blkg. by Others or Full-Depth LSL Blocking at 48" o.c., End and Mid-Wall Min., w/ (4) 10d Thru Sheathing from Above Transfer per SW Sched. (Upper Wall Req.) Bndry Nailing for SW Below
