The brace members connect to a gusset plate designated as T1, which ties into the structural steel beam at a designated work point. The gusset plate is attached using fillet welds indicated by W1 and length L. The brace members connect to the gusset plate using N1 and N2 bolts sized per the drawing notes. Clearances and edge distances are maintained per the specified dimensions and notes.

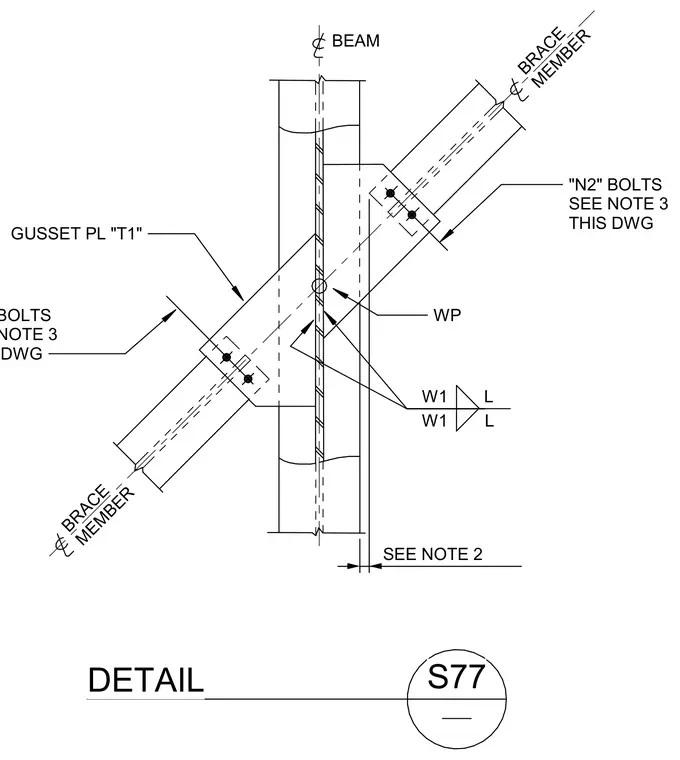

BRACE MEMBER BRACE MEMBER L L BEAM S77 DETAIL W1 W1 GUSSET PL "T1" "N1" BOLTS SEE NOTE 3 THIS DWG WP SEE NOTE 2 "N2" BOLTS SEE NOTE 3 THIS DWG
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
